An accurate set of floor plans is at the foundation of any successful renovation.
In a perfect world, this would mean using the construction drawings of the building you’ve been contracted to work on, but it’s not that easy.
Unfortunately, the way a building was designed and the way it was built don’t always match up, which can result in costly differences when it comes time to design the space and complete the renovation.
The solution? UNIQ Dimensions' industrial as built floor plans.
Using advanced laser technology, we can quickly obtain the specifications of a building the way it was built, providing 100% accurate floor plans that make designing easier, accelerate the process and equip your renovation team with the detailed information they need.
Whether you’re working on a warehouse, distribution centre, or factory, UNIQ Dimensions is here to provide you with the floor plans your team needs.
We undertake the following process to ensure efficient, cost-effective, and accurate delivery of your as built floor plans.
The familiarization with a given project includes inquiring about building density, design, and accessibility to allow for the estimation of time for completion and cost of the required drafting services.
Our team will complete our building measuring services during our site visit. Measurements are primarily taken from the inside and complemented with outside measurements. Full access must be given to ensure the completion of accurate floor plans.
Our drafting services are completed after the site visit. Any labels, detailing, and other special requests are added. Any industry standards will be applied if necessary. Lastly, AutoCad and BIM files are finalized.
All technical and electronic documents defined in the project's scope of work are reviewed. The finalization of all requested documents is completed and provided to the client in their desired format.
Our standard services including the following.
Dimensionally accurate Revit, AutoCAD or other digital file types.
High-resolution, black & white floor plans for everyday viewing, sharing and printing.
High-quality, 360 degree videos for easy reference.
You may add any of the following services to your standard as built floor plan package.
Service delivery is only as good as the technology used for the project. UNIQ Dimensions uses advanced laser technology and the latest supported software to record and measure all actual layout variations, ensuring the delivery of fast and accurate results.
Our small size allows us to be heavily involved in every aspect of your project. Together, we work as one dedicated team, giving your project the attention and commitment it deserves.
We know how important timelines are. The last thing we want to do is delay your building process. As such, a pillar of our success is maintaining open and responsive communication channels with our clients.
We invest in our people and our customers to ensure a best-in-class customer experience. In this way, we hope to be UNIQ, providing a pleasant and memorable process that stands out from the rest.

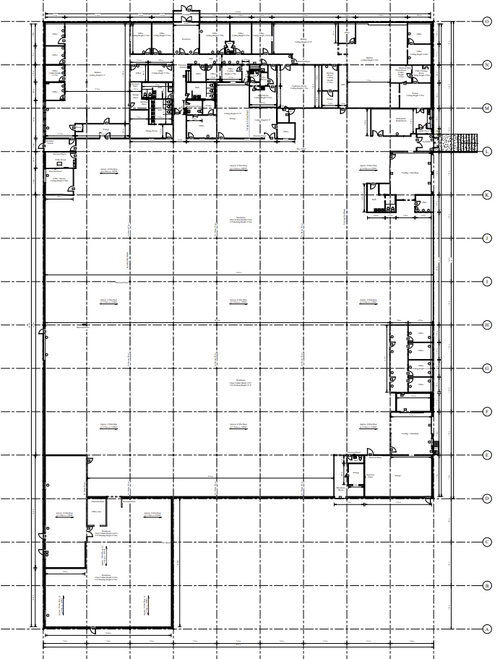

The following are samples of our industrial as built floor plans.
